Optimize Well Production With Modeling
Produce your well with confidence. Our Hydraulic Jet Pump Design & Optimization App uses your production data and well parameters to evaluate all possible nozzle and throat combinations to achieve the highest jet pump efficiency possible. Maximizing jet pump efficiency can lower energy usage.
The powerful app calculates the optimal injection pressure and jet pump intake pressure based on the actual operational data from your oil or gas well. These features let you plot predicted performance at multiple injection pressures and jet pump intake pressures.
Reduce Costs and Increase Oil and Gas Well Production
JJ Tech employs a combination of patented technologies to provide a tailored artificial lift solution designed to improve production and significantly lower overall operating costs over the life of your high solids or sand-producing wells.
SELECT-JET Pumps
Our unique design and manufacturing process results in best-in-class, efficient lift performance. Operators have the flexibility to place it in the well where all other forms of artificial lift can’t operate.
Hydra-Cell Pro Diaphragm Pumps
The seal-less, packing-free design ensures a reliable, efficient way to power the JJ Tech jet pump.
Hydraulic Jet Pump Design & Optimization App
Using the actual surface and subsurface data from your oil or gas well, our Hydraulic Jet Pump Design & Optimization App lets you plot current jet pump performance and optimize for the future. Our app ensures the downhole jet pump is operating as efficiently as possible, thus maximizing overall production levels.
The Jet Pump Design & Optimization App:
- Is available at no cost upon request with a simple login
- Helps determine if a jet pump system is a viable artificial lift solution for your well

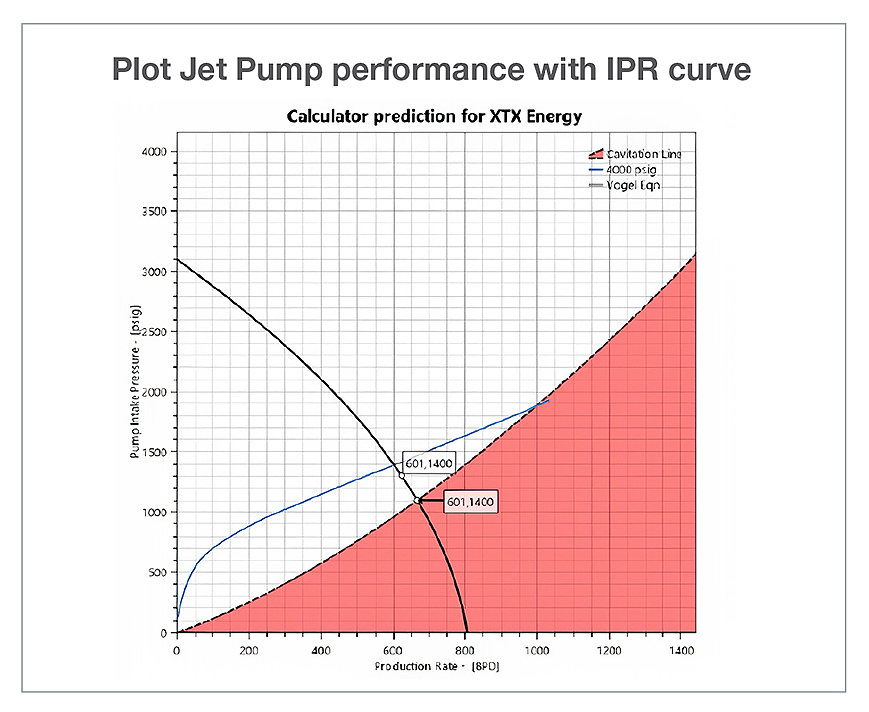

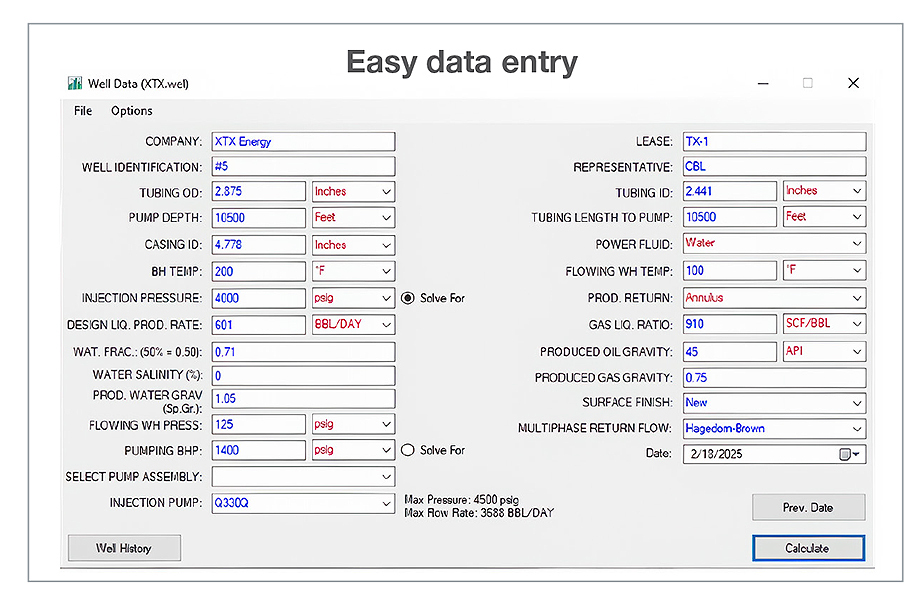

- Lets you input your specific well conditions and plot the predicted jet pump performance

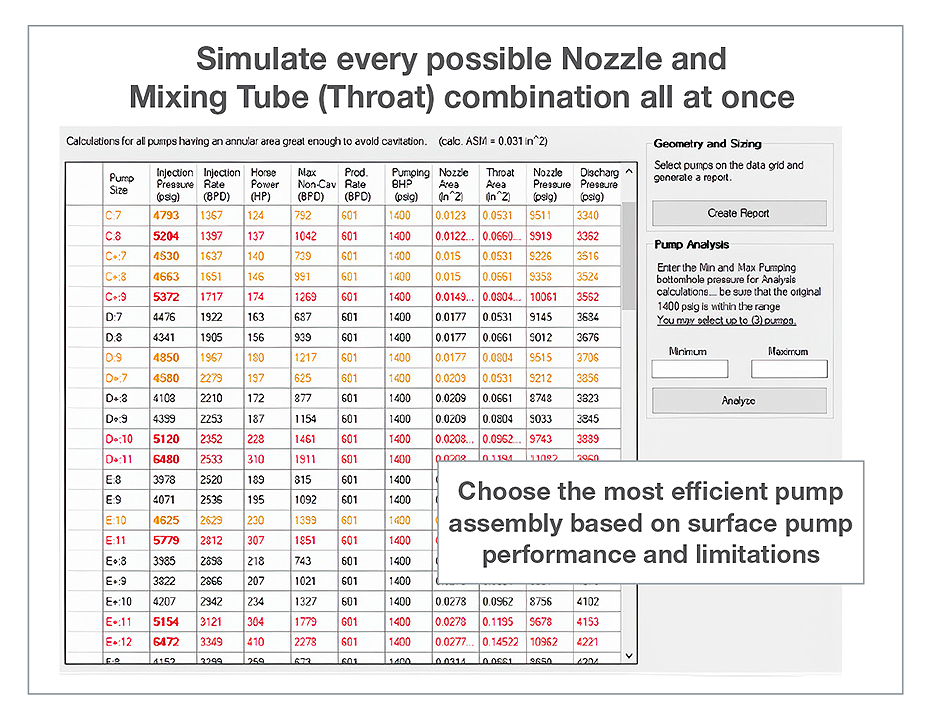

- Calculates every possible nozzle/mixing tube possible to ensure the most efficient combination is in use

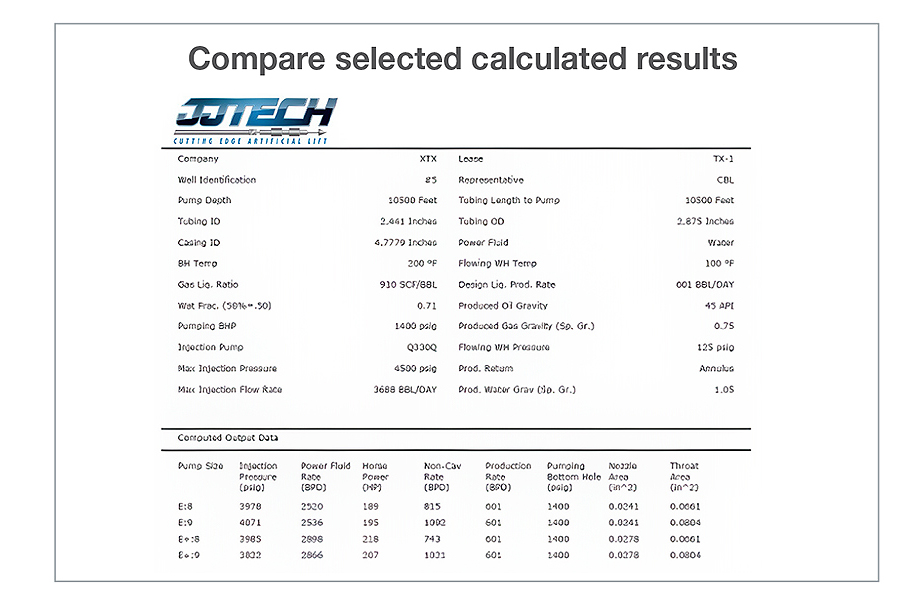

- Saves and recalls previous jet pump analyses to help plot reservoir drawdown over time
Jet Pump Advantages
Greater Reliability
JJ Tech jet pumps offer greater reliability with no downhole moving parts and the ability to handle wells with high sand/solids content.
Reduced Workover Costs
With a JJ Tech jet pump, three- to five-year run times between workovers is not uncommon. Our jet pump systems also provide the ability to continuously treat tubing and casing.
Increased Production
JJ Tech jet pumps can also provide increased production from wells that competing technologies can’t produce effectively. A JJ Tech jet pump system uses a Hydra-Cell Pro pump along with the produced water or oil from the well to power the downhole jet pump.
TALK TO AN EXPERT
Our team of experts specialize in resolving your challenging oil and gas well production problems. Talk to JJ Tech about analyzing your well at no cost and let us show you how we can help optimize your well production and lower your operating costs.
