SELECT-JET™ JET PUMPS
Improve production with the most versatile Hydraulic Jet Pumps in the oil and gas industry
Jet Pump production rates are up to 6000 BPD
- Deviated and horizontal wells
- Sand/Solids producing wells
- Gas well / CBM Dewatering (Concentric)
- “Slim Hole” for wells with damaged casing
- Heavy Oil Production ( >10 API)
- High Water Cut wells
- Initial Flow Back / Frac-Hit Wells
- Retrofit into existing completions
Easy Retrieval of the Jet Pump
- “Normal Flow” jet pumps can be retrieved by reverse circulation. (No workover rig or slick-line needed)
- “Reverse Flow” jet pumps are retrieved by slick-line.
- Normal and Reverse Jet Pumps both utilize JJ Tech’s SELECT-JET Bottom Hole Assembly.
Jet Pump Materials of Construction
Our materials of construction are selected to ensure very long life even in the harshest of well environments. Standard material is 17-4 PH Stainless Steel – (QPQ). Premium materials include: Inconel 625, Hastelloy X, 316 Stainless Steel and 420 Stainless Steel (Boron Carbide Clad).
Sliding Sleeve / Retrofit Jet Pumps
The ability to adapt to existing completions enables lower cost of implementation and greater ease to switch to or from other forms of artificial lift.

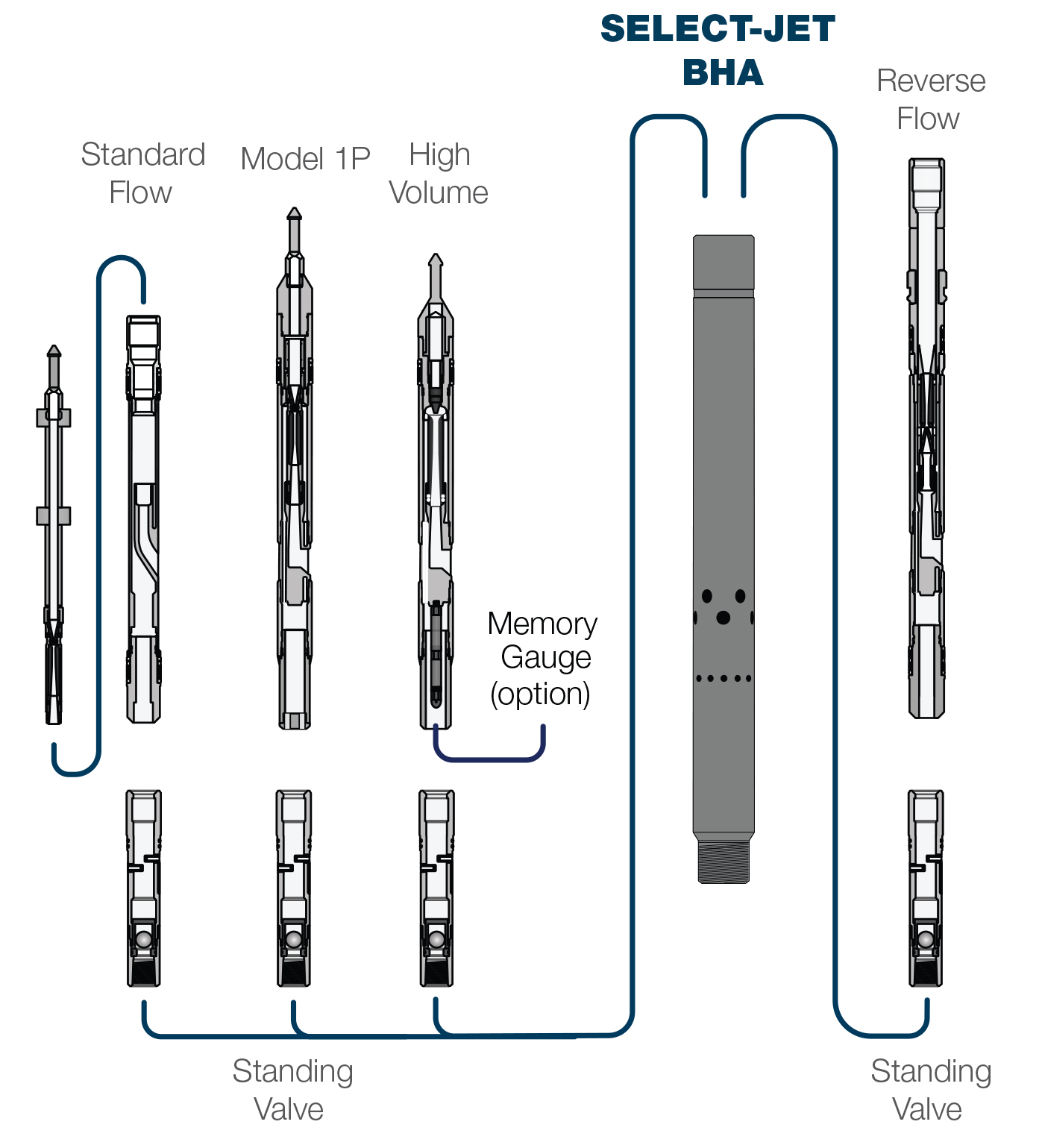

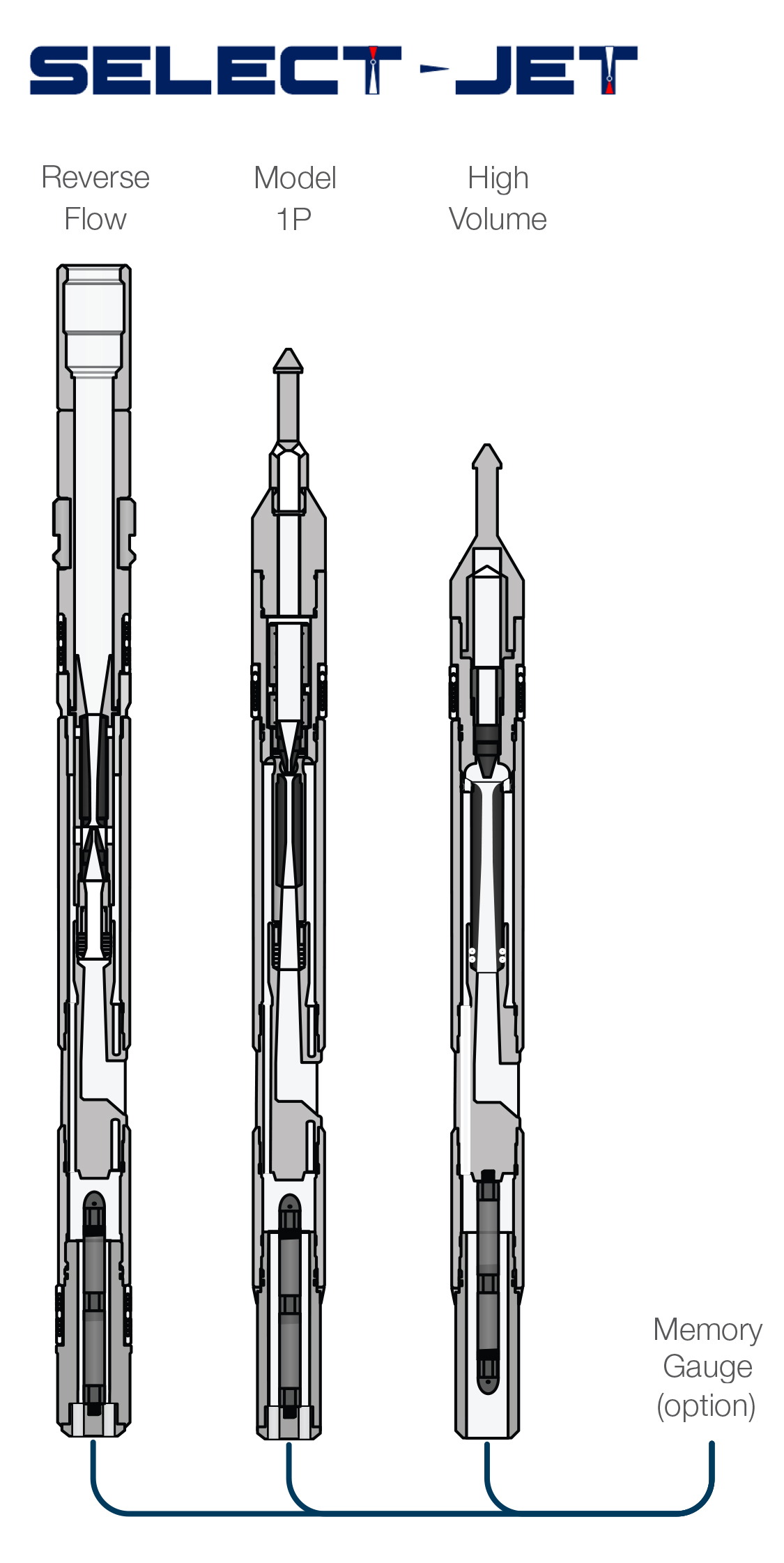

Standard Flow, Model 1P, High Volume, and Reverse Flow Jet Pumps all utilize the same SELECT-JET Bottom Hole Assembly (BHA)
- Versatile Bottom Hole Assembly (17-4 PH Standard)
- Anti-Hang / Rapid Equalizing Standing Valve
- Simple Design / More Laminar Flow
- Tubing Sizes 2-3/8″, 2-7/8″, 3-1/2″
- BH Pressure / Temperature Data Log Capability

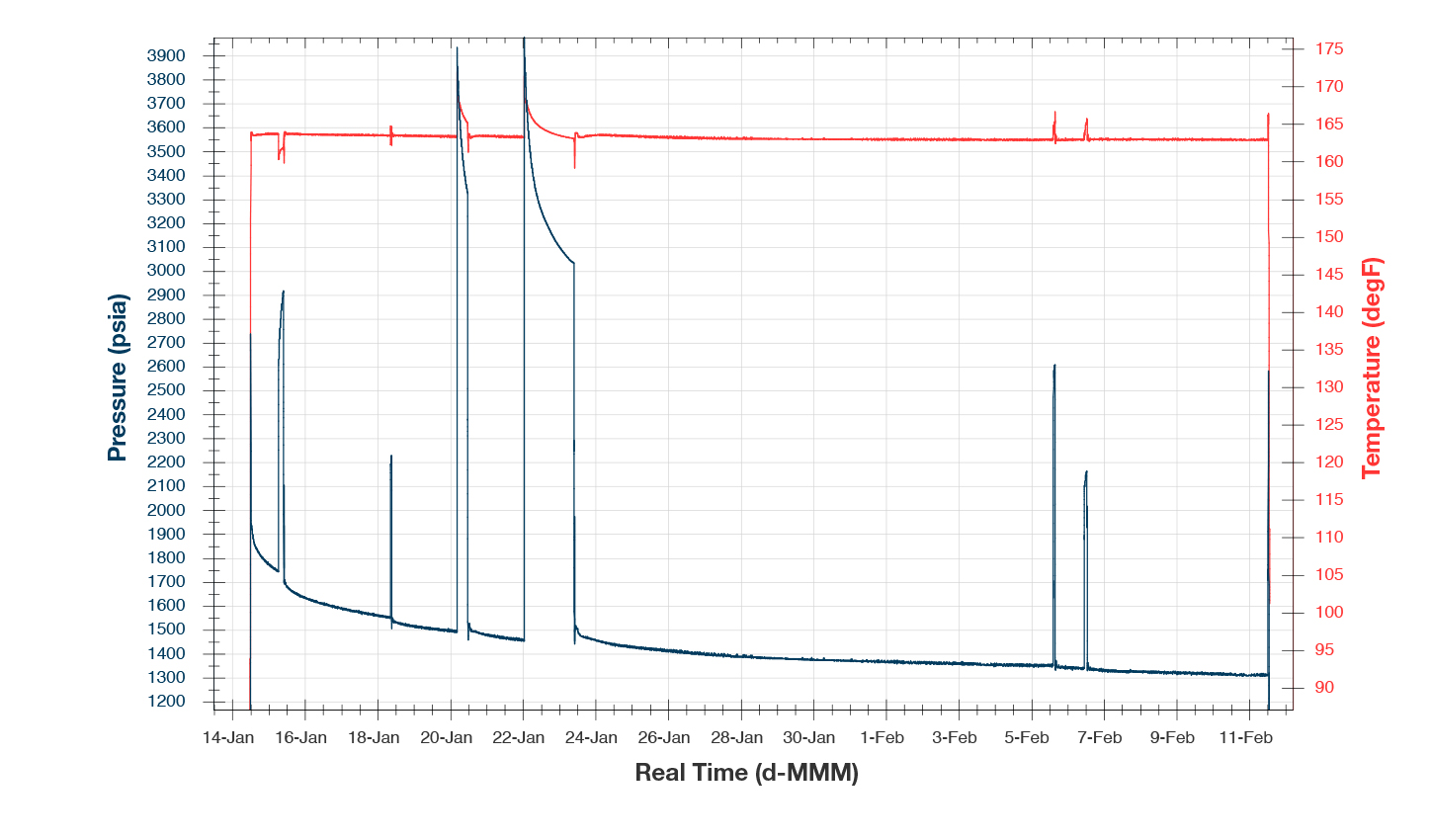

Downhole Pressure & Temperature Sensor
No need for slick-line to set or retrieve
- Circulates in and out of well with Jet Pump
- Records BHP data for up to 45 days
- Works with any SELECT-JET pump
SELECT-JET Features
- Versatile Bottom Hole Assembly with High Flow Capacity
- All Viton Elastomers (O-Rings)
- PEEK/Teflon Vee Packing
- 17-4 PH Stainless Steel – Standard (QPQ)
- Premium Materials Include
- Inconel 625
- Hastelloy X
- 316 Stainless Steel
- 420 Stainless Steel (Boron Carbide Clad).
